FLD01

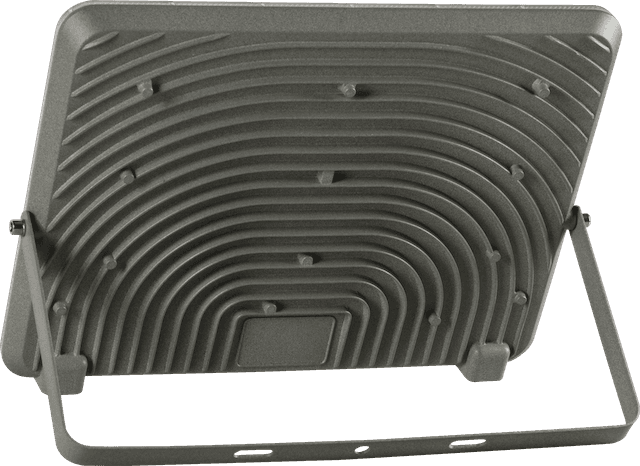

FLD01 DOB Flood Light – First Version
Versatile DOB flood light from 30 W to 300 W
The FLD01 is a first-generation DOB LED flood light engineered for outdoor commercial and industrial applications. Six power options (30–300 W) deliver 3,600–36,000 lm at 90°. An IP65 die-cast aluminium housing, wide AC 85–277 V input, and 4 KV surge protection ensure global reliability. Selectable tri-CCT (3000 K / 4000 K / 6500 K) suits any scene. CE, RoHS and CCC certified.
- IP65 Dustproof & Waterproof
- 4 KV Anti-Surge
- AC 85–277 V Wide Input
- DOB LED Technology
- Tri-CCT: 3000/4000/6500 K
Technical Highlights
Specifications
SeriesFLD01 First Version DOB
Power Range30–300 W
Total Lumen3,600–36,000 lm
Beam Angle90°
Power Factor0.6/0.9
Input VoltageAC 85–277 V
Withstand Voltage1.5 KV
Surge Protection3 KV (30 W) / 4 KV (50–300 W)
IP RatingIP65
LED Count36–432
CertificationsCE, RoHS, CCC
