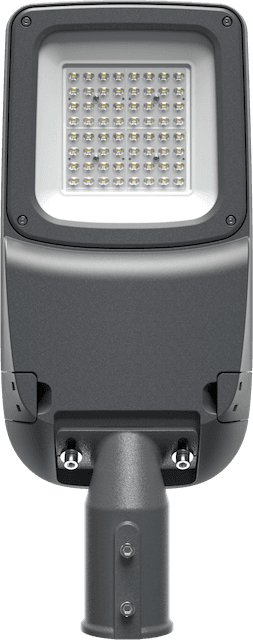

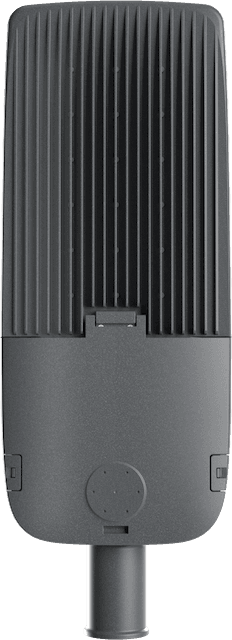

RSN12 LED Street Light
Wide-beam 120 lm/W street light for boulevards and arterials
The RSN12 features a 90°/180° wide-throw beam designed to illuminate broad boulevards and dual-carriageways without extra fixtures. At 120 lm/W efficiency over 40–240 W, it cuts operating costs while maintaining excellent road uniformity. IP65, −40 °C cold-start and multi-level surge protection (up to 20 KV) ensure all-climate durability. AC 100–277 V. CE, RoHS certified.
- 90°/180° Wide-Throw Beam
- 120 lm/W Efficiency
- Up to 20 KV Surge
- IP65 Weatherproof
- −40 °C Cold Start
Technical Highlights
Specifications
SeriesRSN12
Power Range40–240 W
Luminous Efficacy120 lm/W
Beam Angle90°/180°
Power Factor0.9
Input VoltageAC 100–277 V
LED Count72–320
Surge Protection4–20 KV Multi-Level
IP RatingIP65
Operating Temp.−40 °C to +50 °C
CertificationsCE, RoHS
