STW01

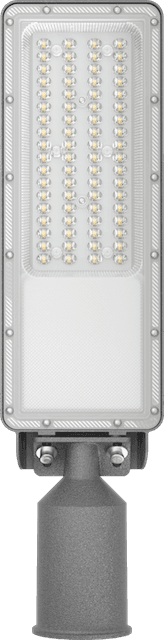

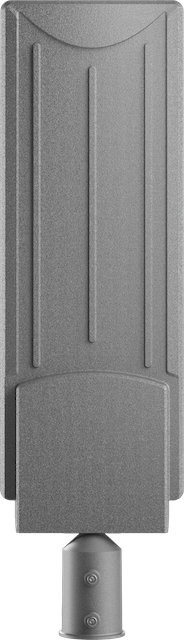

STW01 DOB Street Light
High-efficiency DOB street light for urban road networks
The STW01 DOB street light is engineered for roads, highways and urban arterials. Its aerodynamic aluminium housing operates at −40 °C and achieves IP65 protection, while a 75°/140° asymmetric beam pattern maximises road surface uniformity. Four power options (50–200 W) deliver 6,000–22,000 lm. AC 100–277 V input and 4 KV surge protection ensure global compatibility. CE, RoHS and CCC certified.
- IP65 Waterproof
- −40 °C Low-Temp Operation
- 75°/140° Asymmetric Beam
- 4 KV Anti-Surge
- CE / RoHS / CCC Certified
Technical Highlights
Specifications
SeriesSTW01 DOB Street Light
Power Range50–200 W
Total Lumen6,000–22,000 lm
Beam Angle75°/140°
Power Factor0.6/0.9
Input VoltageAC 100–277 V
Withstand Voltage1.5 KV
Surge Protection4 KV
IP RatingIP65
Operating Temp.−40 °C to +50 °C
CertificationsCE, RoHS, CCC
