01/02
STW02

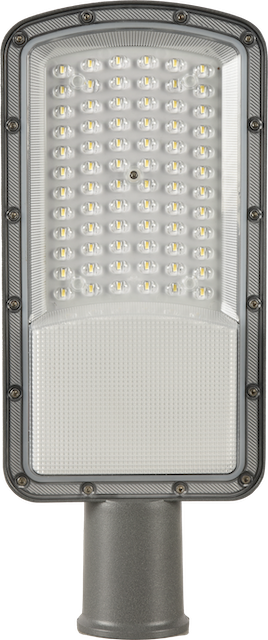

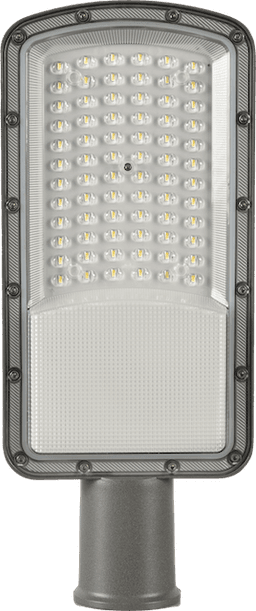

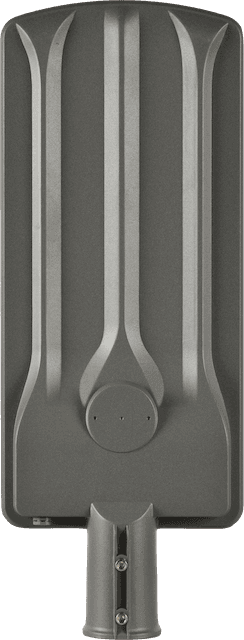

STW02 DOB Street Light
Slim-profile DOB street light for residential and secondary roads
The STW02 features a slimmer die-cast housing than the STW01, making it ideal for residential streets and secondary roads where a lower visual impact is preferred. It delivers 6,000–22,000 lm across 50–200 W at a 75°/140° asymmetric distribution. IP65 protection, −40 °C cold-start capability and 4 KV surge shielding are standard. AC 100–277 V wide input ensures it can be deployed globally. CE, RoHS and CCC certified.
- Slim DOB Housing
- IP65 Waterproof
- −40 °C Cold Start
- 4 KV Anti-Surge
- Tri-CCT Available
Technical Highlights
Specifications
SeriesSTW02 DOB Street Light
Power Range50–200 W
Total Lumen6,000–22,000 lm
Beam Angle75°/140°
Power Factor0.6/0.9
Input VoltageAC 100–277 V
Withstand Voltage1.5 KV
Surge Protection4 KV
IP RatingIP65
Operating Temp.−40 °C to +50 °C
CertificationsCE, RoHS, CCC
