Su01

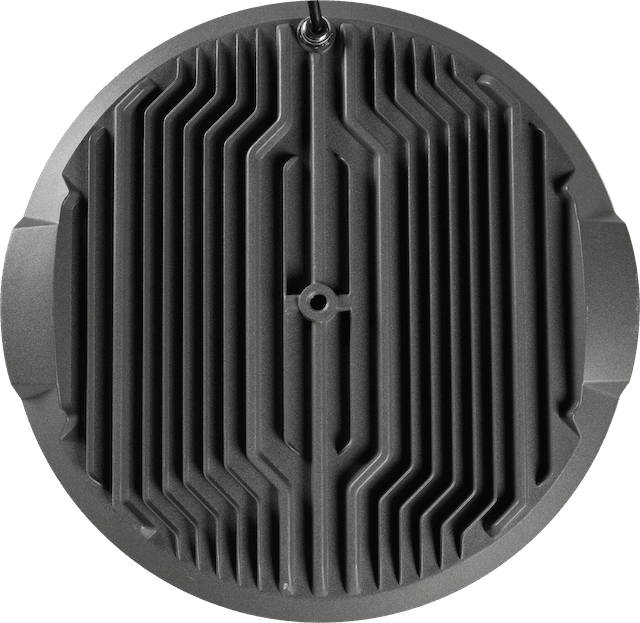

Su01 DOB UFO High Bay Light

Flat-profile DOB UFO high bay for warehouses and factories

The Su01 is a flat-disc DOB UFO high bay delivering 11,000–33,000 lm across 100–300 W with a standard 90° downward beam. Its aluminium body, IP65 rating, −40 °C cold-start and AC 100–277 V input make it suitable for warehouses, sports halls and industrial facilities worldwide. Surge protection to 4 KV and PF 0.6/0.9 complete the specification. CE, RoHS certified.

Power
  • Flat DOB UFO Design
  • IP65 Dustproof & Waterproof
  • 4 KV Anti-Surge
  • −40 °C Cold Start
  • AC 100–277 V Wide Input

Technical Highlights

Specifications100W

Rated Power100W
DimensionsØ266 × 30.5 mm
Beam Angle90°
Luminous Flux11,000 lm
Power Factor0.6 / 0.9
LED Chips144
Input VoltageAC 100–277V
Withstand Voltage1.5KV
Surge Protection4KV
